| Parameter | Specification |
|---|---|
| Machine Type | Baking Oven |
| Chamber Capacity | 150 Ltr |
| Temperature Range | -25°C to 120°C |
| Temperature Control | Digital |
| Heating System | Electric Heating |
| Air Circulation | Forced Air Circulation |
| Chamber Construction | Insulated |
| Shelves | Adjustable |
| Application | Baking, Drying, Heating & Thermal Testing |
| Parameter | Specification |
|---|---|
| Machine Type | PCB QR Code Laser Marking Machine |
| Application | QR Code Marking on PCB |
| Marking Method | Laser Marking |
| Minimum QR Code Size | 4 × 4 mm |
| Workpiece | Printed Circuit Board (PCB) |
| PCB Loading | Bunch Loader |
| PCB Unloading | Bunch Unloader |
| PCB Transfer | Input / Output Conveyor |
| Marking | Permanent Laser Marking |
| Automation | Automated PCB Handling |
| Application Type | PCB Identification & Traceability |
| Production Integration | Suitable for Production-Line Integration |
| Marking Data | QR Code / Identification Data |
| System Configuration | Customizable as per application requirement |
| Parameter | Specification |
|---|---|
| Machine Type | UV Laser Marking Machine |
| Laser Type | Purple / UV Laser |
| Laser Power | 5W |
| Laser Head | Single Head |
| Marking Material | Plastic & Metal |
| Marking Method | Non-Contact Laser Marking |
| Marking Content | Text, Logo, Serial Number, Barcode, QR Code |
| Application | Product Identification & Permanent Marking |
| Machine Configuration | Industrial Laser Marking System |
| Parameter | Specification |
|---|---|
| Machine Type | Cabinet-Type UV Conveyor Curing Machine |
| Overall Dimensions (L×W×H) | 2000 × 750 × 1500 mm |
| Curing Zone Length | 1000 mm |
| Inlet Length | 400 mm |
| Outlet Length | 400 mm |
| Inlet Height | 200 mm, Adjustable |
| Outlet Height | 200 mm, Adjustable |
| Conveyor Belt Width | 400 mm |
| Conveyor Height | 700 mm from ground, Adjustable |
| UV Light Source | 2 Sets |
| Luminous Area | 400 × 150 mm per set |
| UV Wavelength | 365 nm |
| Light Power Density | Above 1200 nW/cm² |
| Irradiation Distance | 0–150 mm, Adjustable |
| Irradiation Adjustment | Motorized |
| UV Intensity | 10–100%, Adjustable |
| Cooling Method | Water Cooling + Air Cooling |
| Inlet/Outlet Cooling | Cooling Fans |
| Oven Temperature | <60°C |
| Caster System | Adjustable Casters & Feet |
| Conveyor Type | Continuous Conveyor |
| Application | UV Curing, Adhesive Curing, Coating Curing & Industrial Production |
| Parameter | Specification |
|---|---|
| Product Type | 4-Axis Automatic Glue Dispensing Robot |
| Model | SEC-E580SV-Y |
| Machine Structure | Desktop Type |
| Motion Platform | XYZ Desktop Four-Axis Motion Platform |
| X-Axis Travel | 500 mm |
| Y-Axis Travel | 300 mm |
| Z-Axis Travel | 100 mm |
| Axis System | 4-Axis Motion |
| Y-Axis Configuration | Double Y |
| Control System | PC Control |
| Visual System | CCD Visual Positioning |
| Glue Feeding | Automatic Glue Feeder |
| Operation | Programmable / PC Controlled |
| Dispensing Type | Automatic Adhesive Dispensing |
| Machine Assembly | Internally Self-Assembled Complete Machine |
| Application | Glue Dispensing, Bonding, Sealing & Adhesive Application |
| Parameter | Specification |
|---|---|

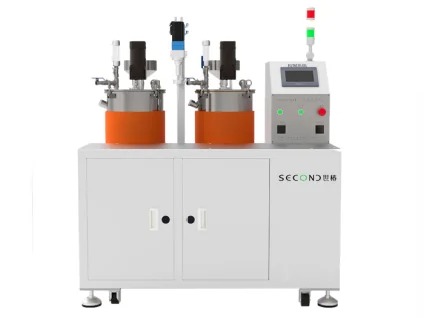

| Machine Type | Automatic AB Glue Dispensing & Mixing Machine |
| Working Mode | Fully Automatic Mixing & Quantitative Dispensing |
| Control System | PLC + Touchscreen + Hand Controller |
| Metering System | Dual Stepper Motor Control |
| Metering Pump | Precision Gear Pump / Screw Pump |
| Metering Accuracy | ±2% |
| Mixing Accuracy | ±2% |
| Dispensing Speed | 2–5 g/s, Adjustable |
| Mixing Ratio | A:B 100:100 to 100:10 |
| Mixing Method | Static Mixing / Dynamic Mixing |
| Storage Tank Capacity | 30L |
| Tank Material | SUS304 Stainless Steel |
| Liquid Level Monitoring | Available |
| Liquid Level Alarm | Available |
| Tank Stirring | Optional |
| Constant Temperature Device | Optional |
| Automatic Feeding | Optional |
| Vacuum Degassing | Optional |
| Glue Pipeline | Teflon Steel-Wire Pipeline |
| Application | Adhesive Dispensing, Potting, Filling, Sealing & Bonding |
