| Parameter | Specification |
|---|---|
| Product Type | 4-Axis Automatic Glue Dispensing Robot |
| Model | SEC-E580SV-Y |
| Machine Structure | Desktop Type |
| Motion Platform | XYZ Desktop Four-Axis Motion Platform |
| X-Axis Travel | 500 mm |
| Y-Axis Travel | 300 mm |
| Z-Axis Travel | 100 mm |
| Axis System | 4-Axis Motion |
| Y-Axis Configuration | Double Y |
| Control System | PC Control |
| Visual System | CCD Visual Positioning |
| Glue Feeding | Automatic Glue Feeder |
| Operation | Programmable / PC Controlled |
| Dispensing Type | Automatic Adhesive Dispensing |
| Machine Assembly | Internally Self-Assembled Complete Machine |
| Application | Glue Dispensing, Bonding, Sealing & Adhesive Application |

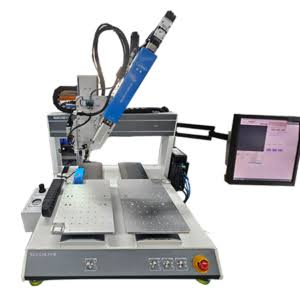

The SEC-E580SV-Y 4-Axis Automatic Glue Dispensing Robot is a compact and high-precision desktop dispensing system designed for automated adhesive application, bonding and dispensing processes.
The machine combines a four-axis motion platform, CCD visual positioning, PC-based control and automatic glue feeding into a single integrated system. This allows manufacturers to automate repetitive glue dispensing operations while maintaining consistent positioning and dispensing performance.
The desktop XYZ motion platform provides a working travel of 500mm in X, 300mm in Y and 100mm in Z, allowing the machine to handle a variety of workpiece sizes and dispensing patterns.
The integrated CCD visual system can be used for visual positioning and alignment, helping the machine locate the required dispensing position before starting the programmed operation.
The machine uses PC control software for programming and operation. Dispensing paths and movement sequences can be programmed according to the production requirement, making the system suitable for repeated production operations.
The automatic glue feeder supplies adhesive material to the dispensing system, reducing the need for continuous manual feeding during operation.
The Double-Y desktop configuration provides a stable working platform and can be used for efficient handling of dispensing applications where accurate positioning and repeatable movement are required.
The complete machine is internally assembled and supplied with the specified accessories for the dispensing system.
Note: Exact dispensing accuracy, dispensing speed, compatible adhesive viscosity and drive-system specifications should be confirmed according to the final machine configuration and glue dispensing system.
