| Parameter | Specification |
|---|---|
| Machine Type | Automatic AB Glue Dispensing & Mixing Machine |
| Working Mode | Fully Automatic Mixing & Quantitative Dispensing |
| Control System | PLC + Touchscreen + Hand Controller |
| Metering System | Dual Stepper Motor Control |
| Metering Pump | Precision Gear Pump / Screw Pump |
| Metering Accuracy | ±2% |
| Mixing Accuracy | ±2% |
| Dispensing Speed | 2–5 g/s, Adjustable |
| Mixing Ratio | A:B 100:100 to 100:10 |
| Mixing Method | Static Mixing / Dynamic Mixing |
| Storage Tank Capacity | 30L |
| Tank Material | SUS304 Stainless Steel |
| Liquid Level Monitoring | Available |
| Liquid Level Alarm | Available |
| Tank Stirring | Optional |
| Constant Temperature Device | Optional |
| Automatic Feeding | Optional |
| Vacuum Degassing | Optional |
| Glue Pipeline | Teflon Steel-Wire Pipeline |
| Application | Adhesive Dispensing, Potting, Filling, Sealing & Bonding |

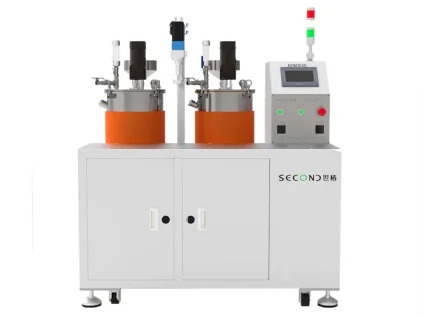

The Automatic AB Glue Dispensing & Mixing Machine is an industrial solution for accurately measuring, mixing and dispensing two-component liquid adhesives. The system separately stores and meters Component A and Component B, combines them according to the programmed mixing ratio and dispenses the mixed adhesive at a controlled rate.
The machine is equipped with a PLC control system, touchscreen interface and hand controller, providing convenient operation and parameter adjustment. Depending on the adhesive characteristics and production requirements, the machine can use a precision gear pump or screw pump for metering.
The adjustable mixing ratio allows the machine to handle different two-component adhesive formulations. The supplied configuration supports an A:B ratio from 100:100 to 100:10, which can be adjusted according to the actual material requirement.
The system can operate with either static or dynamic mixing, providing flexibility for different adhesive materials and production processes. Optional functions such as material stirring, tank temperature control, automatic feeding and vacuum degassing can also be integrated according to the application.
Reference SEC-S8700-E specifications also describe automatic material feeding/refilling, degassing, level sensing and continuous homogeneous dispensing as available system functions.
