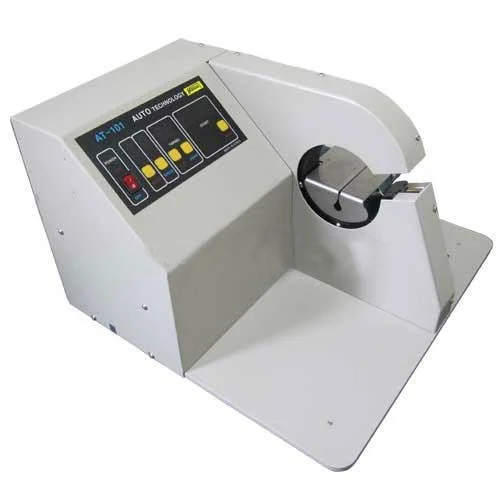

AT-101 Harness Bundling Machine

Specification of  Harness Bundling Machine

• Tape width: 2-40 mm
• Taping length: 0-600 mm per second
• Wire diameter: 0.1-40 mm
• Weight: 26 kg

Installation of Harness Bundling Machine

• Place the harness taping machine to the working area.
• Make sure the machine is horizontal before fixed.
• Connect the power cable with footswitch.

Operation of Harness Bundling Machine

• Put the tapes into the tape rack.
• Turn on the machine with “ON/OFF” button.
• Select an operation mode with “AUTO/MANU” button.
• Set a required speed.
• Rotational speed should be defined under AUTO mode.
